Connects up to 4 cameras to one Wireless Receiver Box 4CH.

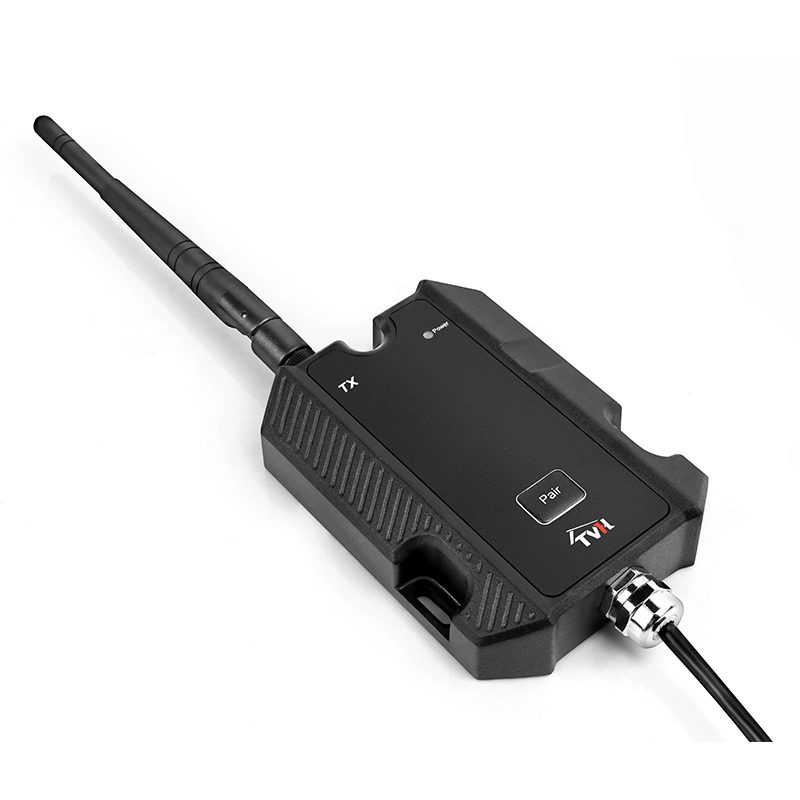

Very easy installation saves a lot of time. The cameras are directly connected to the Wireless Sender Box 4CH input channels. Only one power supply connection is needed at the box.
No additional cable connections needed when connecting a trailer.
Easy pairing by pressing just two buttons.
No interference due to digital video transmission.
Works with HD and SD cameras.
Wireless transmission distance of up to 300m in open field.
| Video format | AHD 1080p | AHD 720p | CVBS | |||
| Videosystem | PAL | NTSC | ||||
| Framerate | 25 fps | 30 fps | ||||
| Channels | 4 CH | |||||
| Frequency Range | 2403MHz-2478MHz | |||||
| max.Range(Barrier Free) | FCC:300 m | CE:200 m | MIC:100 m | |||
| Transmission Power | FCC:≤26dBm | CE:≤20dBm | MIC:≤10dBm | |||
| Receiving Sensitivity | -78dBm | |||||
| Video Codec | H.264 | |||||
| RF Bit Rate | max.12 Mbps | |||||
| Modulation | FHSS | |||||
| Delay | max.200 ms | |||||
| Operating Voltage | 10-32 VDC | |||||
| Current @12 VDC | Sender:150 mA+Camera:max.600mA | |||||
| Power Consumption | max.9 W | |||||
| Operating Temperature | -20℃-+70℃ | |||||
| Storage Temperature | -40℃-+80℃ | |||||
| Dimensions | 85 mmx117 mmx25 mm | |||||
| Weight | 420g | |||||
| IP Protection Class | IP69K | |||||
| Vibration Resistant | 5G | |||||
| Shock Resistant | 7G | |||||
| Material | Metal | |||||
| Color | Black | |||||
| Cable Length | 30 cm | |||||
| Cable Diameter | 5.0 mm | |||||
| Camera Connector | 4 Pin Male M-Series | |||||
| Monitor Connectorr Diameter | 14 mm | |||||
| min.Bending Radius | 5x Cable Diameter | |||||
