Very easy installation saves a lot of time. The camera is directly connected to

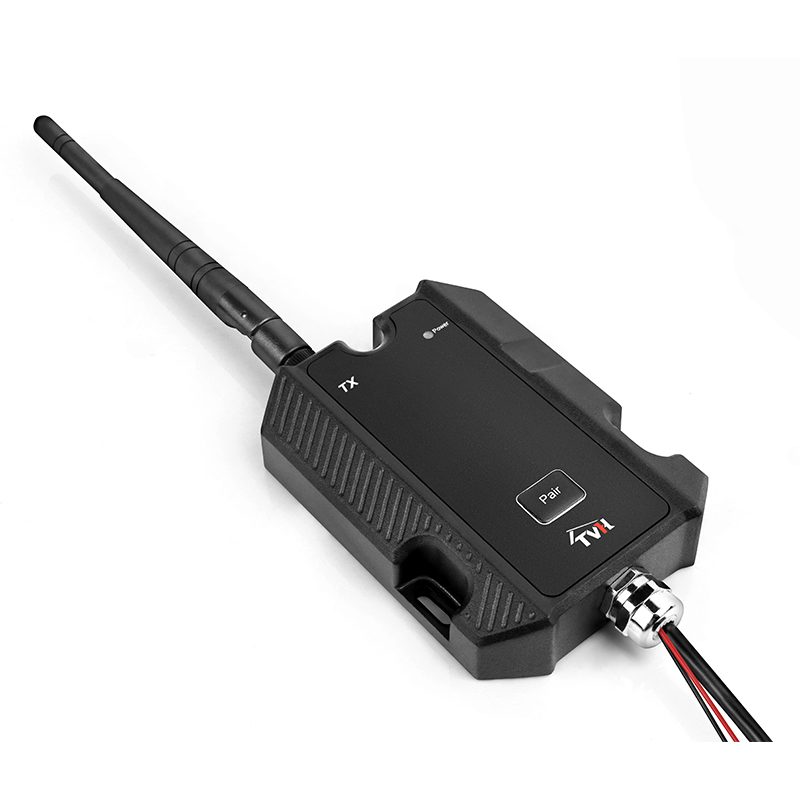

the Wireless Sender Box 1CH input channel. Power supply connection is just needed at the box.
No additional cable connections needed when connecting a trailer.
Easy pairing by pressing just two buttons.
No interference due to digital video transmission.
Works with HD and SD cameras.
Wireless transmission distance of up to 300m in open field.
| Video format | AHD 1080p | AHD 720p | CVBS | |||
| Videosystem | PAL | NTSC | ||||
| Framerate | 25 fps | 30 fps | ||||
| Channels | 1 CH | |||||
| Frequency Range | 2403MHz-2478MHz | |||||
| max.Range(Barrier Free) | FCC:300 m | CE:200 m | MIC:100 m | |||
| Transmission Power | FCC:≤26dBm | CE:≤20dBm | MIC:≤10dBm | |||
| Receiving Sensitivity | -78dBm | |||||
| Video Codec | H.264 | |||||
| RF Bit Rate | max.12 Mbps | |||||
| Modulation | FHSS | |||||
| Delay | max.200 ms | |||||
| Operating Voltage | 10-32 VDC | |||||
| Current @12 VDC | Sender:150 mA+Camera:max.600mA | |||||
| Power Consumption | max.9 W | |||||
| Operating Temperature | -20℃-+70℃ | |||||
| Storage Temperature | -40℃-+80℃ | |||||
| Dimensions | 85 mmx117 mmx25 mm | |||||
| Weight | 420g | |||||
| IP Protection Class | IP69K | |||||
| Vibration Resistant | 5G | |||||
| Shock Resistant | 7G | |||||
| Material | Metal | |||||
| Color | Black | |||||
| Cable Length | 30 cm | |||||
| Cable Diameter | 5.0 mm | |||||
| Camera Connector | 4 Pin Male M-Series | |||||
| Monitor Connectorr Diameter | 14 mm | |||||
| min.Bending Radius | 5x Cable Diameter | |||||
