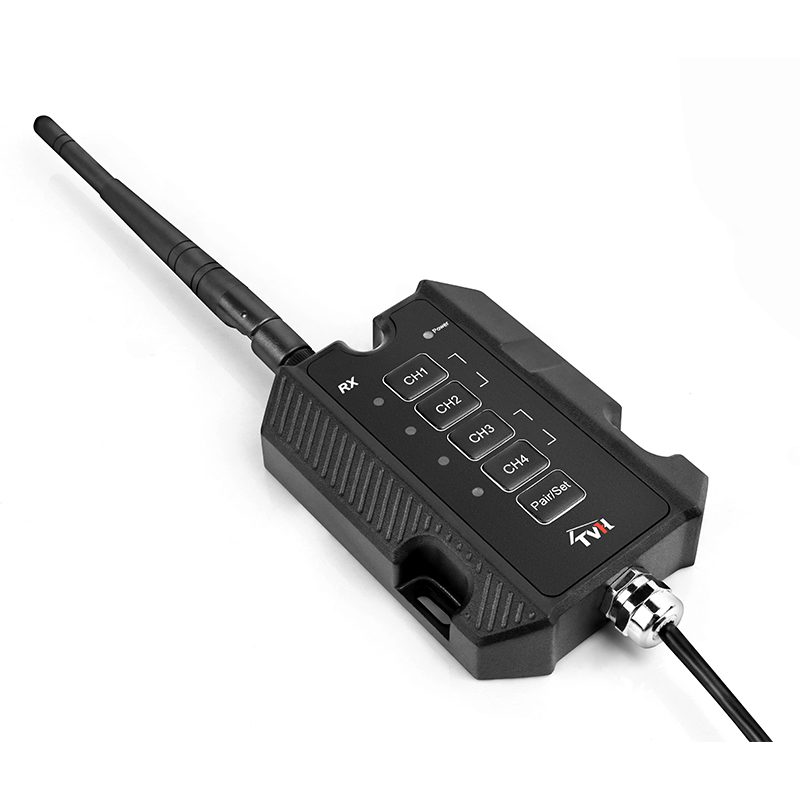

Wireless Receiver 4CH AHD PW0202

Can receive up to 4 camera images from 1 Wireless Sender Box 4CH. The transmitted camera

can be selected by:

– Integrated keys on the unit

– Trigger wires (optional)

– External control unit with buttons. (optional)

Very easy installation saves a lot of time. The Unit does not require an external power supply and is just connected to one monitor input channel.

No additional cable connections needed when connecting a trailer.

Easy pairing by pressing just two buttons.

No interference due to digital video transmission.

Works with HD and SD cameras.

Wireless transmission distance of up to 300m in open field.

Video format AHD 1080p AHD 720p CVBS
Videosystem PAL NTSC
Framerate 25 fps 30 fps
Channels 4 CH
Frequency Range 2403MHz-2478MHz
max.Range(Barrier Free) FCC:300 m CE:200 m MIC:100 m
Transmission Power FCC:≤26dBm CE:≤20dBm MIC:≤10dBm
Receiving Sensitivity -78dBm
Video Codec H.264
RF Bit Rate max.12 Mbps
Modulation FHSS
Delay max.200 ms
Operating Voltage 10-32 VDC
Current @12 VDC Sender:150 mA+Camera:max.600mA
Power Consumption max.9 W
Operating Temperature -20℃-+70℃
Storage Temperature -40℃-+80℃
Dimensions 85  mmx117  mmx25  mm
Weight 420g
IP Protection Class IP69K
Vibration Resistant 5G
Shock Resistant 7G
Material Metal
Color Black
Cable Length 30 cm
Cable Diameter 5.0 mm
Camera Connector 4 Pin Male M-Series
Monitor Connectorr Diameter 14 mm
min.Bending Radius 5x Cable Diameter
