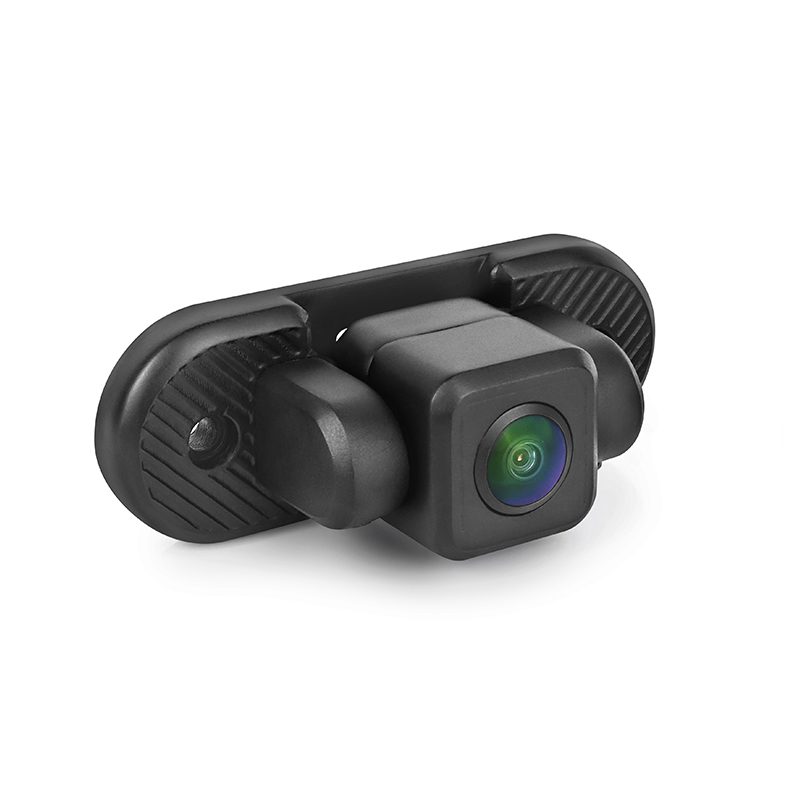

Small size enables installation in tight mounting situations.
Camera can be tilted to ensure installation from top to bottom at the rear side of the vehicle.
IP69K rating Different lens options to meet desired viewing angles.
Strong vibration and shock resistance.
Advanced CMOS image sensor with high resolution and image enhancement functionality.
Lens anti-reflection coating to avoid bright hot spots in the camera image.
| Resolution | 1920x1080 |
| Megapixel | 2 MP |
| Video Format | AHD 1080p |
| Sensor Type | CMOS |
| Sensor Manufacturer | GalaxyCore |
| Sensor Size | 1/2.9 inch |
| Sensing Area | 5.59 mmx3.02 mm |
| Pixel Size | 2.8μm×2.8μm |
| Frame Rate | 25 fps/30 fps |
| Scanning System | Progressive Scan |
| Shutter Mode | Rolling Shutter |
| S/N Ratio | >52 dB |
| Dynamic Range | 81dB |
| AWB | Auto |
| AGC | Auto |
| BLC | Auto |
| Video Signal | 1.0Vp-p,75 Ohm |
| Focal Length | 1.96 mm |
| Aperture | f/2.0 |
| Focus | Fixed |
| Field of View(FOV) | 175°(D)×156°(H)×80°(V) |
| Operating Voltage | 10-32 VDC |
| Current @12 VDC | Normal:117 mA |
| Power Consumption | max.1.4 W |
| Operating Temperature | -30℃-+70℃ |
| Storage Temperature | -40℃-+80℃ |
| IR-LED | No |
| IR Wavelength | No |
| Night Vision Distance | No |
| IR-Cut | No |
| Minimum Illumination | 0.01 Lux |
| Audio | No |
| Heater | No |
| Image Mode | Mirror |
| Dimensions | 80 mmx58mmx40 mm(with Bracket) |
| Weight | 240g |
| IP Protection Class | IP69K |
| Vibration Resistant | 5.9G |
| Shock Resistant | 10G |
| Material | Aluminum,Glass,Stainless Steel |
| Color | Black |
| Cable Length | 50 cm |
| Cable Diameter | 4.0 mm |
| min.Bending Radius | 5x Cable Diameter |
| Connector Type | 4 Pin Socket M-Series |
| Connector Diameter | 14 mm |
