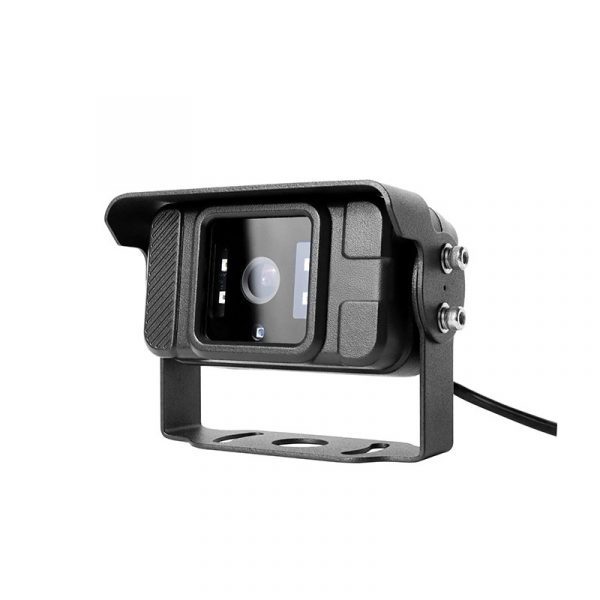

Heavy-Duty Camera CC0101

Waterproof Truck Reverse Camera

IP69k

Audio

Heater

AHD 1080p

IR-LED

Category:

Designed for Heavy-Duty use.

Normal or mirror image can be set by the user to ensure different mounting situations.

Wide range input voltage to support different kinds of vehicles.

Different lens options to meet desired viewing angles.

Integrated heater to prevent fog and snow on the lens.

4 high power IR-LEDs for advanced night vision.

Integrated microphone.

Resolution 1920x1080
Megapixel 2 MP
Video Format AHD 1080p
Senso Type CMOS
Sensor Manufacturer GalaxyCore
Sensor Size 1/2.9 inch
Sensing Area 5.38 mm x 3.02 mm
Pixel Size 2.8 µm x 2.8µm
Frame Rate 25 fps / 30 fps
Scanning System Progressive Scan
Shutter Mode Rolling Shutter
S/N Ratio >52 dB
Dynamic Range 81dB
AWB Auto
AGC Auto
BLC Auto
Video Signal 1.0Vp-p,75 Ohm
Focal Length 2.8 mm
Aperture f / 2.3
Focus Fixed
Field of View (FOV) 120°(D) x 105°(H) x 60°(V)
Operating Voltage 10-32 VDC
Current @12 VDC Normal: 85 mA, IR: +150 mA, Heater: +200 mA
Power Consumption max. 4.6 W
Operating Temperature -30°C - +70°C
Storage Temperature -40°C - +80°C
IR-LED Yes
IR Wavelength 850 nm
Night Vision Distance 10-15m
IR-Cut Dual Filter Switch
Minimum Illumination 0 Lux
Audio Yes
Heater Yes
Image Mode Normal / Mirror - Switch
Dimensions 109 mm x 76 mm x 72 mm ( with Bracket and Sun Shield)
Weight 438g
IP Protection Class IP69K
Vibration Resistant 5.9 G
Shock Resistant 10 G
Material Aluminum, Glass, Stainless Steel
Color Black
Cable Length 45 cm
Cable Diameter 5.5 mm
min. Bending Radius 5 x Cable Diameter
Connector Type 4 Pin Socket M-Series
Connector Diameter 14 mm
