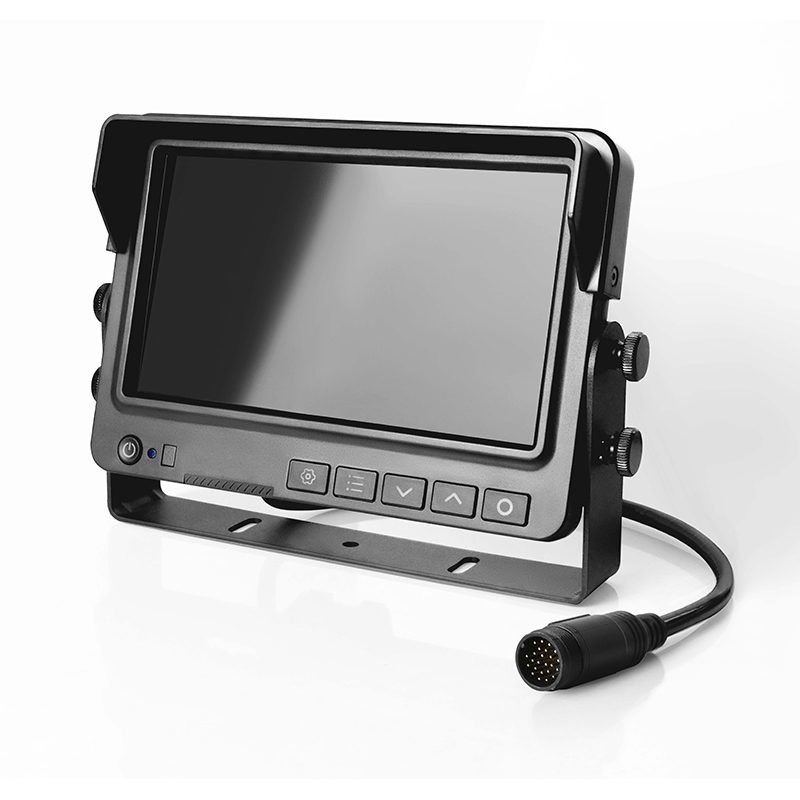

7 Inch AHD Backup Monitor Vehicle Monitor for Truck MC0403

MC0403 is a professional 7 inch AHD monitor for heavy duty truck, specially crafted to serve as a high-performance Vehicle Monitor truck backup monitor and premium AHD monitor for truck.
Designed exclusively for heavy-duty trucks, commercial fleets, buses, trailers and RVs, this 7 inch AHD monitor for heavy duty truck delivers exceptional clarity with AHD 1080P/720P signal support, ensuring clear, stable image display for backup cameras and rear view cameras—critical for reversing safety and multi-angle vehicle monitoring.
As a reliable AHD monitor for truck, it is equipped with 4 channel video inputs to support multi-camera integration.
Whether for daily reversing assistance or comprehensive fleet monitoring, MC0403 stands out as the ideal Vehicle Monitor truck backup monitor, perfectly meeting the safety and monitoring needs of heavy-duty vehicles.
Category:
">
  • Recordings are available in case of an accident.

    ♦ Many configuration options helping the integration in the vehicles system and automization of the displayed image in different cases.

    ♦ Supports Micro-SD cards up to 256GB.

    ♦ Quad-View shows up to 4 camera images simultaneously.

    ♦ Image brightness automatically adjusts to the environmental light conditions.

    ♦ Multi signal inputs. AHD and CVBS cameras can be connected.

    ♦ Different mounting options to meet every installation situation.

    ♦ Integrated speaker.

    ♦ Trigger inputs to control the displayed image by the vehicle automatically

    LCD Size 7“
    Resolution 1024x600
    Aspect Ratio 16:9
    LCD Panel IPS
    Video Format AHD1080p AHD720p CVBS
    Video System PAL NTSC
    Frame Rate 25fps 30fps
    Channels 4CH
    Multiview Quad
    Brightness 600cd/m²
    Contrast 600:1
    Viewing Angle U:85°,D:85°,L:85°,R:85°
    Anti Reflection No
    Touchscreen No
    Speaker Yes
    Automatic Dimming Yes
    Guide Lines Optional
    Picture Modes Normal Mirror Flip Mirror+Flip
    Trigger Wires 4
    Trigger Delay optonal
    Remote Control No
    OSD Languages Upto9
    Operating Voltage 10-32VDC
    Current@12VDC Monitor: 400mA@12V
    Power Consumption normal. 4.8W;
    Operating Temperature -20°C-+70°C
    Storage Temperature -40°C-+80°C
    Dimensions 211mmx149mmx55mm(withU-BracketandSunShield)
    Weight 660g
    IP Protection Class IP30
    Vibration Resistant 5G
    Shock Resistant 7G
    Mounting Options Center Bracket U-Bracket AMPS
    Material ABS,Metal
    Color Black
    Cable Length 35cm
    Wire Harness Detachable
    Cable Diameter 8.0mm
    Monitor Connector 24Pin
    Monitor Connector Diameter 20mm
    min.Bending Radius 5xCableDiameter
    Camera Connector 4PinPlugM-Series
    Connector Diameter 14mm
