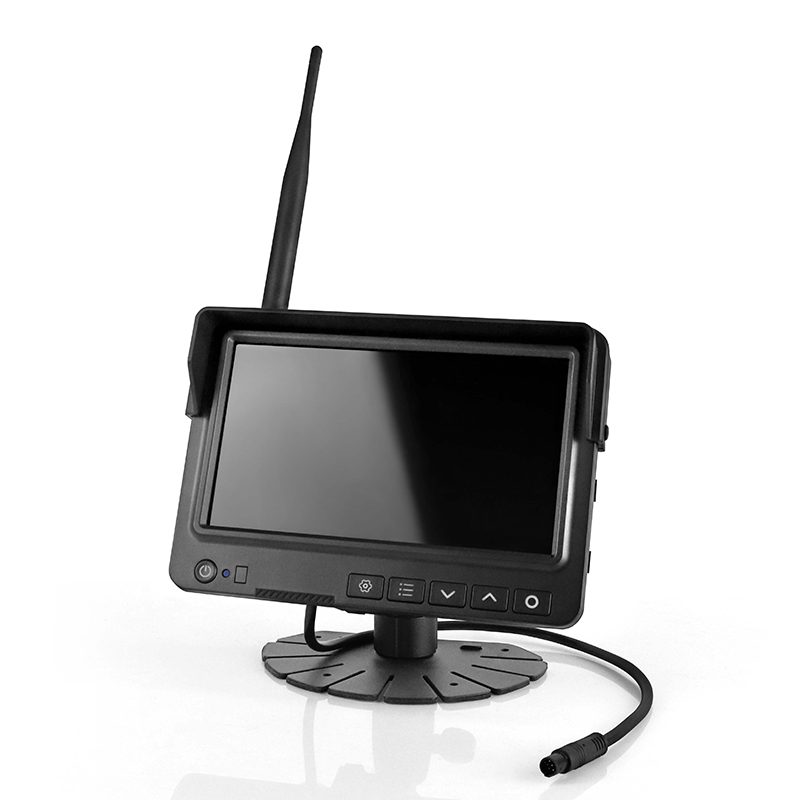

7″ High Definition Quad-view Wireless Monitor MW0101

IP30

Audio

Digital Wireless

4 Channels

Category:

Very easy installation saves a lot of time. Only the power supply needs to be connected.

No cables from the monitor to the camera needed.

No additional cable connections needed when connecting a trailer.

No interference due to digital video transmission.

Integrated speaker.

Trigger inputs to control the displayed image by the vehicle automatically.

Many configuration options helping the integration in the vehicles system and automization

of the displayed image in different cases.

Supports Micro-SD cards up to 256GB.

Quad-View shows up to 4 camera images simultaneously.

LCD Size 7“
Resolution 1024 x 600
Aspect Ratio 16:9
LCD Panel IPS
Video Format 1080p 720p CVBS
Video System PAL NTSC
Frame Rate 25 fps 30 fps
Channels 4 CH
Multiview Quad
Brightness 600 cd/m²
Contrast 600:1
Viewing Angle U: 85°, D: 85°, L: 85°, R: 85°
Touchscreen No
Speaker Yes
Automatic Dimming Yes
Guide Lines optional
Picture Modes Normal Mirror Flip Mirror + Flip
Trigger Wires 5
Trigger Delay optional
Remote Control No
OSD Languages English, German, Spanish, Italian, French, Portuguese
Frequency Range 2403MHz-2478MHz
max. Range (Barrier Free) FCC: 300 m CE: 200 m MIC: 100 m
Transmission Power FCC: ≤26dBm CE: ≤20dBm MIC: ≤10dBm
Receiving Sensitivity -78dBm
Video Codec H.264
RF Bit Rate max. 12 Mbps
Modulation FHSS
Delay max. 200 ms
Operating Voltage 10-32 VDC
Current @12 VDC Monitor: MAX300 mA
Power Consumption max. 3.6W
Operating Temperature -20°C - +70°C
Storage Temperature -40°C - +80°C
Dimensions 211 mm x 149 mm x 55 mm (with Bracket and Sun Shield)
Weight 643g
IP Protection Class IP30
Vibration Resistant 5 G
Shock Resistant 7 G
Mounting Options Center Bracket U-Bracket 100x100
Material ABS, Metal
Color Black
Cable Length 30 cm
Wire Harness detachable
Cable Diameter 5.0 mm
Monitor Connector 8 Pin
Monitor Connector Diameter 8 mm
min. Bending Radius 5 x Cable Diameter
