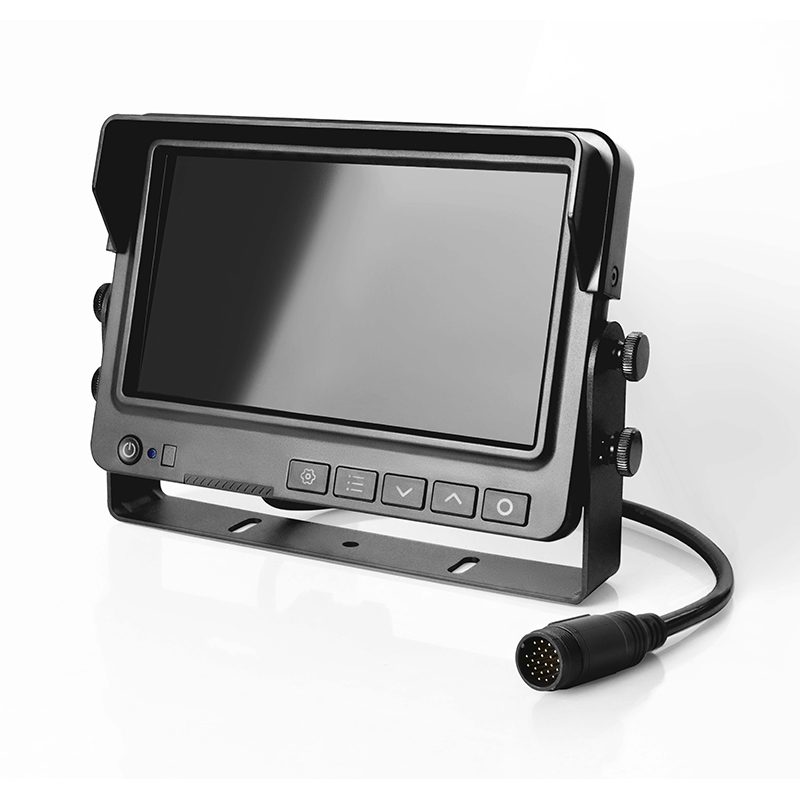

7″ High Definition Quad-view Monitor MC0101

7″ High Definition Quad-view Monitor

IP30

Audio

DVR

4 Channels

Category:

Recordings are available in case of an accident.

Many configuration options helping the integration in the vehicles system and automization of the

displayed image in different cases.

Supports Micro-SD cards up to 256GB.

Quad-View shows up to 4 camera images simultaneously.

Image brightness automatically adjusts to the environmental light conditions.

Multi signal inputs. AHD and CVBS cameras can be connected.

Different mounting options to meet every installation situation.

Integrated speaker.

Trigger inputs to control the displayed image by the vehicle automatically.

LCD Size 7“
Resolution 1024 x 600
Aspect Ratio 16:9
LCD Panel IPS
Video Format AHD 1080p AHD 720p CVBS
Video System PAL NTSC
Frame Rate 25 fps 30 fps
Channels 4 CH
Multiview Quad
Brightness 600 cd/m²
Contrast 600:1
Viewing Angle U: 85°, D: 85°, L: 85°, R: 85°
Anti Reflection No
Touchscreen No
Speaker Yes
Automatic Dimming Yes
Guide Lines Optional
Picture Modes Normal Mirror Flip Turn
Trigger Wires 4
Trigger Delay 1-10s
Remote Control No
OSD Languages Up to 10
Operating Voltage 10-32 VDC
Current @12 VDC Monitor: 800 mA, + Cameras: max. 2000 mA
Power Consumption max. 35 W
Operating Temperature -20°C - +70°C
Storage Temperature -30°C - +80°C
Dimensions 191 mm x 149 mm x 55 mm (with U-Bracket and Sun Shield)
Weight 664g
IP Protection Class IP30
Vibration Resistant 5 G
Shock Resistant 7 G
Mounting Options Center Bracket U-Bracket AMPS
Material ABS, Metal
Color Black
Cable Length 35 cm
Wire Harness Detachable
Cable Diameter 8.0 mm
Monitor Connector 24 Pin
Monitor Connector Diameter 20 mm
min. Bending Radius 5 x Cable Diameter
Camera Connector 4 Pin Plug M-Series
Connector Diameter 14 mm
