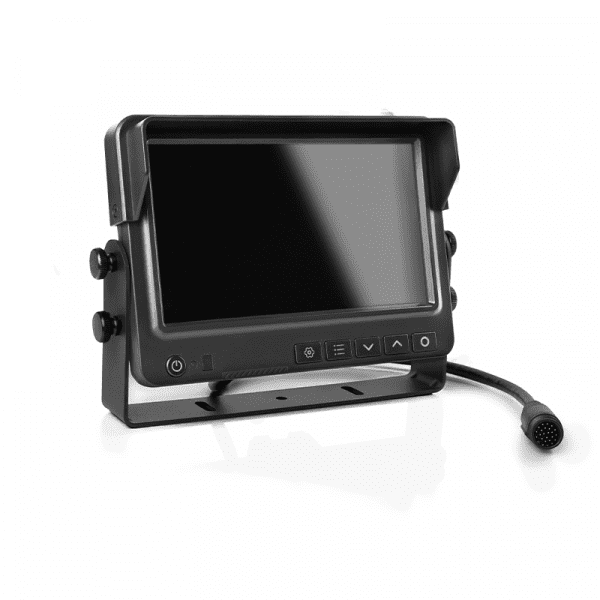

7″ High Definition Monitor 3 Inputs MC0201

IP30

Audio

3 Channels



Category:

Monitor – Very easy to operate due to smart preconfiguration of the system.

Camera-Designed for Heavy-Duty use.

Camera – Normal or mirror image can be set by the user to ensure different mounting situations.

Better overview for big vehicles or when the rear sight is blocked by the vehicles structure or cargo.

Helps to prevent accidents that can cause injury, death or damage.

Best compatibility with other componets from TVH.

High compatibility with other systems in the market. (Optional adapter may needed)

High resolution picture ensures better visibility than normal analog CVBS systems.

Easy installation.



LCD Size 7“
Resolution 1024 x 600
Aspect Ratio 16:9
LCD Panel IPS
Video Format AHD 1080p AHD 720p CVBS
Video System PAL NTSC
Frame Rate 25 fps 30 fps
Channels 3 CH
Multiview No
Brightness 600 cd/m²
Contrast 600:1
Viewing Angle U: 85°, D: 85°, L: 85°, R: 85°
Anti Reflection No
Touchscreen No
Speaker Yes
Automatic Dimming Yes
Guide Lines Optional
Picture Modes Normal Mirror Flip
Trigger Wires 3
Trigger Delay 1-15s
Remote Control No
OSD Languages Up to 10
Operating Voltage 10-32 VDC
Current @12 VDC Monitor: 300 mA, + Cameras: max. 500 mA
Power Consumption max. 9.6 W
Operating Temperature -20°C - +70°C
Storage Temperature -30°C - +80°C
Dimensions 191 mm x 149 mm x 55 mm (with U-Bracket and Sun Shield)
Weight 607g
IP Protection Class IP30
Vibration Resistant 5 G
Shock Resistant 7 G
Mounting Options Center Bracket U-Bracket AMPS
Material ABS, Metal
Color Black
Cable Length 35 cm
Wire Harness Detachable
Cable Diameter 8.0 mm
Monitor Connector 18 Pin
Monitor Connector Diameter 17 mm
Min. Bending Radius 5 x Cable Diameter
Camera Connector 4 Pin Plug M-Series
Connector Diameter 14 mm
